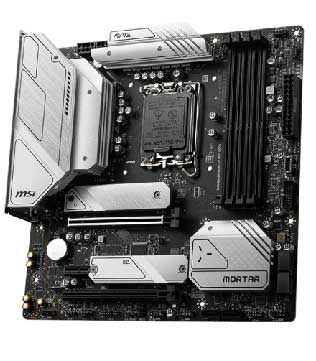

MSI MAG B660M Mortar WIFI DDR4 Motherboard (Pre-owned)

MSI MAG B660M Mortar WIFI DDR4 Motherboard (Pre-owned) Description

-Fully tested and comes with 1 month warranty

-May not include original box

Processor
Supports 12th Gen Intel Core´, Pentium Gold and Celeron processors 1

Processor socket
LGA1700

Chipset Intel:
B660 Chipset

Memory:
4x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Expansion Slot:
2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 4.0 x16
PCI_E3 slot (From B660 Chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot

Multi-GPU:
Supports 2-Way AMD CrossFire´ Technology

Onboard Graphics:
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Storage 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1
2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
2x M.2 slots (Key M)
M2_1 slot (From CPU)

Supports:
PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 Chipset) 1
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Optane´ Memory
SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID:
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1
SATA_A & SATA_B do not support RAID function.
USB Intel B660 Chipset
1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
4x USB 2.0 ports on the back panel
USB Hub-GL3590
3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors

Audio:
Realtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN:
1x Realtek 8125BG 2.5Gbps LAN controller

Wireless LAN & Bluetooth:
Intel Wi-Fi 6
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2

Internal connectors:
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector
LED Feature 4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
Back panel ports USB 2.0 Port
DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI 2.1 Port
USB 3.2 Gen 2×2 20Gbps Type-C
Optical S/PDIF OUT

Dimensions Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
