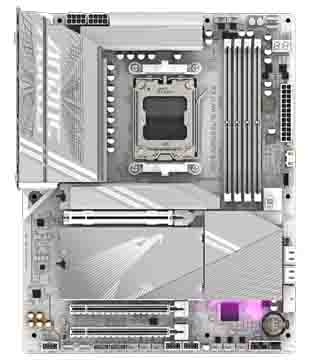

GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD (White) Motherboard (Pre-owned)

GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD (White) Motherboard (Pre-owned) Description

-Fully tested and comes with 1 Month warranty

-May not include original box

Brand : GIGABYTE
Model : X870-AORUS-ELITE-WIFI7-ICE
CPU Socket Type : AM5
CPU Type : Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset : AMD X870
Number of Memory Slots : 4x288pin (DDR5)
Memory Standard : DDR5 5200
Maximum Memory Supported : 256GB
Channel Supported : Dual Channel
ECC Supported : Non-ECC
Buffer Supported : Un-buffered
Memory Feature : Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x16 : 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4 : Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
SATA 6Gb/s : 4 x SATA 6Gb/s
M.2 : 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAID : 36535
Audio Chipset : Realtek ALC1220
Audio Channels : 7.1 Channels
Max LAN Speed : 2.5Gbps
Wireless LAN : Wi-Fi 802.11 be
Bluetooth : BLUETOOTH 5.4
Back I/O Ports : 1 x Q-Flash Plus button 1 x HDMI port 2 x antenna connectors (2T2R) 2 x USB4 USB Type-C ports (DisplayPort) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Onboard USB : 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors : 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper
Form Factor : ATX
Dimensions (W x L) : 12.0″ x 9.6″
Power Pin : 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
BIOS Feature : 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software : Norton Internet Security (OEM version) LAN bandwidth management software
Windows 11 : Supported
