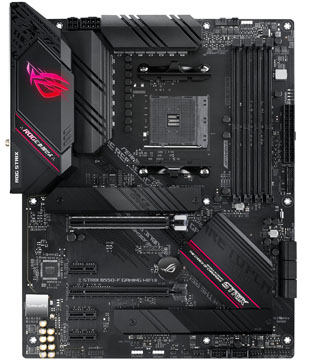

ASUS ROG STRIX B550-F GAMING WIFI Motherboard (Pre-owned)

ASUS ROG STRIX B550-F GAMING WIFI Motherboard (Pre-owned) Description

-Fully tested and comes with 1 month warranty

-May not include original box

Model : ROG STRIX B550-F GAMING (WI-FI)
CPU : AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Chipset : AMD B550
Multi-GPU Support : Supports AMD 2-Way CrossFireX Technology
LAN : Intel® I225-V 2.5Gb Ethernet

Graphic :
1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.

Memory :
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory
Next Generation AMD Ryzen PRO Processors
OptiMem II
3rd Gen AMD Ryzen™ Processors
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Expansion Slots :
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
3 x PCIe 3.0 x1
1 x PCIe 4.0 x16 (x16 mode)

Storage:
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

USB Ports :
Front USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
4 x USB 2.0 port(s)

Back I/O Ports :
1 x BIOS FlashBack™ Button(s)
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
1 x Intel® I225-V 2.5Gb Ethernet
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
1 x DisplayPort
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x HDMI
2 x USB 2.0

Internal I/O Ports
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x Addressable Gen 2 header(s)
